Katbak Ceramic Weld Backing 1G42-FR-1/4

Stock Code:
1G42FR-1-4
Price:
$111.30 excl GST
Special order item
Get a Fast Quote
Add to Favourites

Downloads

Description

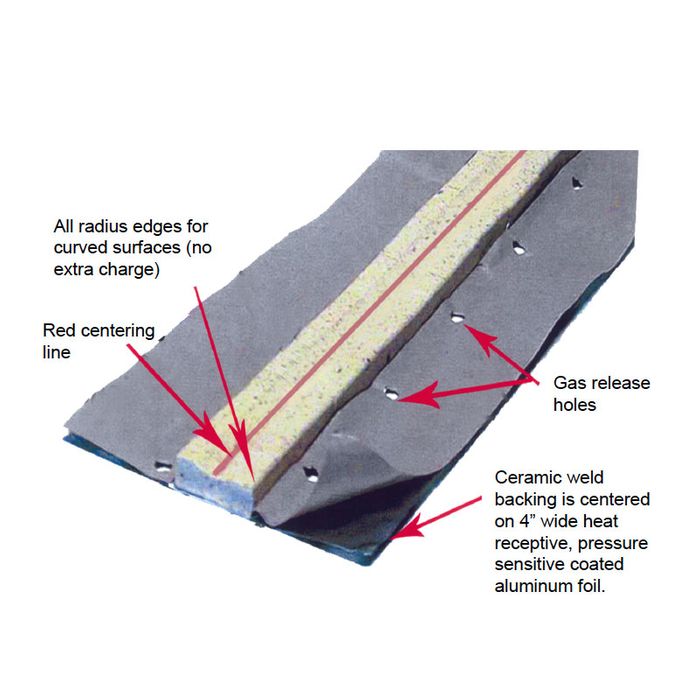

KATBAK Ceramic Weld Backing products offer a reliable and cost-effective method for producing high quality back beads without the need for costly gouging and grinding. Katbak Ceramics feature knuckle joints for use on either flat or curved surfaces.

Features & Benefits:
• Impart x-ray quality back beads on root pass
• Weld one side only
• Deposit more weld metal
• Root weld and fill in one pass
• Wider heat receptive pressure sensitive foil for improved adhesion
• Eliminate defects and rework
• Eliminate costly unnecessary gouging and grinding

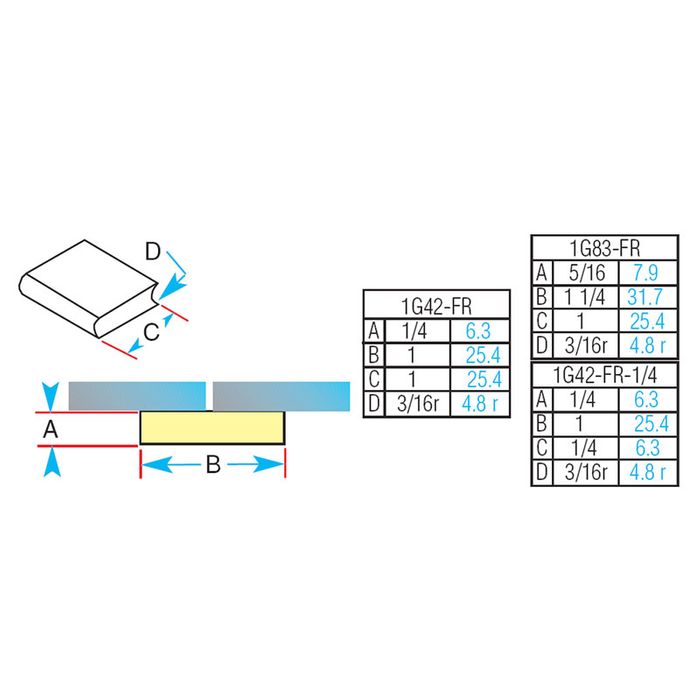

• Sizes 1/4" (6.3 mm) to 2" (50.8 mm)

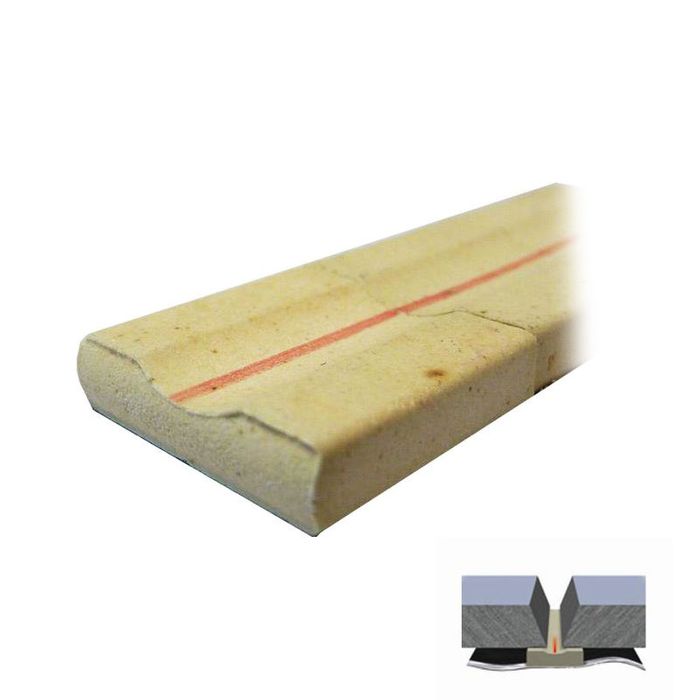

This tile is similar to the standard flat tile but it is more flexible to go round a tighter radius. Please note that all other tile shapes can be made 1/4" long to aid flexibility of the tile. Each tile is radiused to form a strip around a cylinder. 1G83-FR this is similar to the 1G42-FR but it is a thicker, larger tile to withstand higher currents where minimal penetration is required.

Details

  • Brand:
    Gullco
  • Web Type:
    Ceramic Weld Backing Bar
  • Unit/Pack:
    EA
