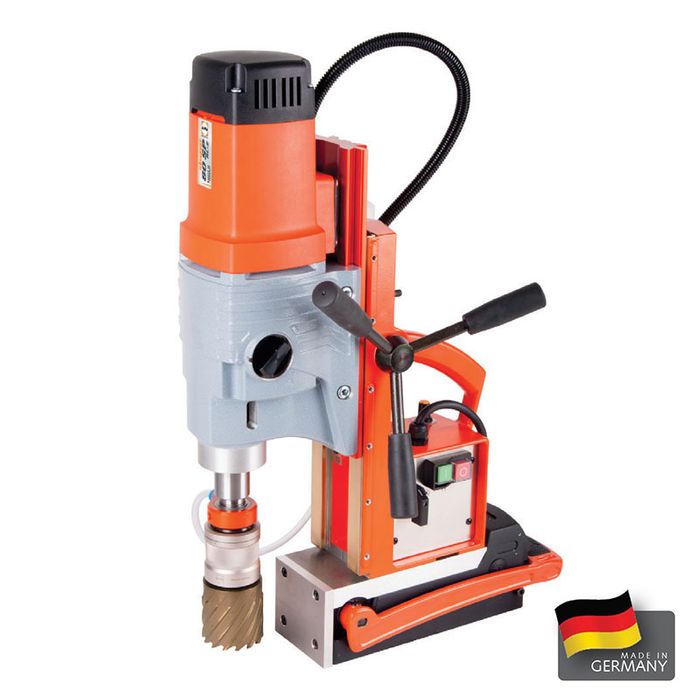

Excision Magnex Drill 100 RL-E

Stock Code:
$6,739.20 excl GST
Stock Level:
Please contact us for stock availability


The new, unique Excision Magnex Drill 100 RL-E provides improved safety by using a powerful magnet that does not need a power supply to work. It adheres to even the thinnest steel sheets or beams.

Key features:
• Smooth start motor with overload protection & emergency stop
• Very light and compact l Stepless adjustment slides
• Self-adjusting guides
• Soft touch grips
• Membrane keyboard

Drill features & specifications:

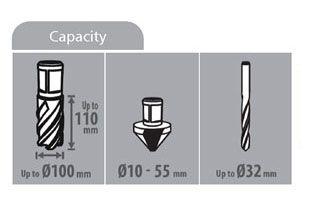

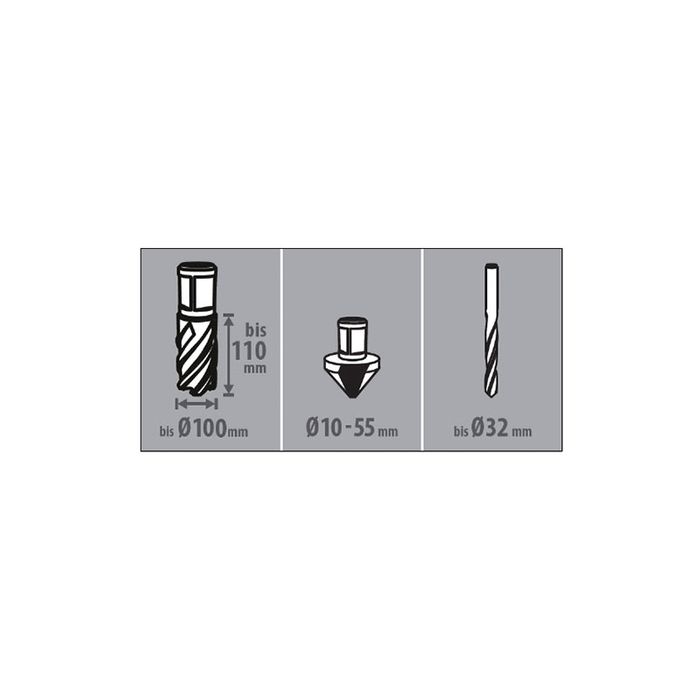

Core Drill Dimensions: 12.0-100.0mm
Cutting Depth: 110.0mm
Twist Drill: 1.0-16.0mm with drill chuck up to 32.0mm with MT3 DIN 345
Counter-Boring: 10.0-55.0mm
Tapping: With Tapping Chucks: Up to M30; With Tapping Attachment: Up to M30
Arbors: MT3
Stroke: 190mm
Height Adjustment: 60mm
4-Speed Gearbox | Right/Left: 1. Step 50-110rpm; 2. Step 75-175rpm; 3. Step 105-245rpm; 4. Step 165-385rpm
Power Consumption: 1,800W
Voltage: 230V 50/60Hz
Tool Force (10mm): 2,500N
Magnetic Base: 94×255mm
Weight: 22.6kg
Warranty: Includes two year manufacturer's warranty
