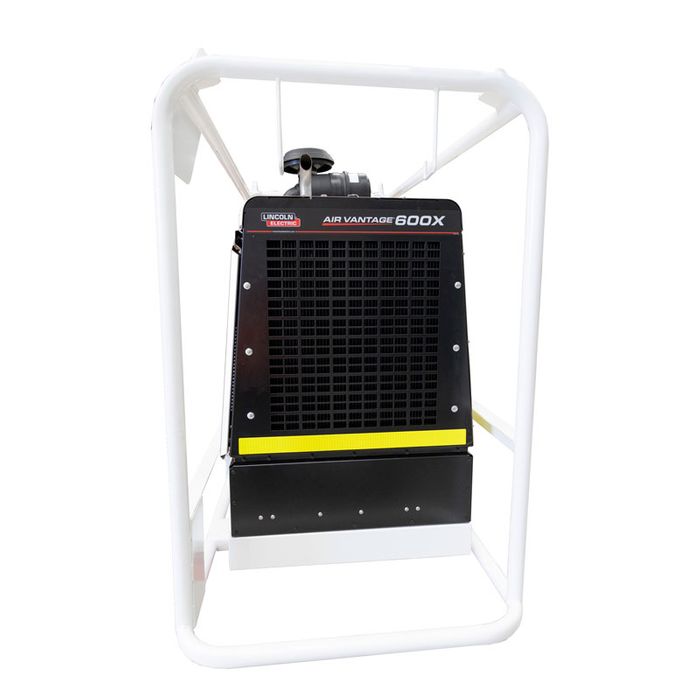

Lincoln Air Vantage 600X Diesel Welder Mine Spec

Stock Code:
K4794-1V-0001
Contact Us For Price
Special order item
Get a Fast Quote
Add to Favourites

Downloads

Description

The Lincoln Electric Air Vantage® 600X is a diesel engine-driven welding power source. The machine uses a brush type alternating current generator for DC multi-purpose welding, and for 240 VAC single phase auxiliary standby power. The welding control system uses state of the art Chopper Technology®. The machine also integrates a belt-driven 60 CFM rotary screw compressor.

The machine has been equipped with CrossLinc® Technology to provide weld cable communication for voltage control at the arc without the need for a control cable.

Features VRD, engine stop, battery isolator and VMAC® compressor.

This is a MINE SPEC COMPLIANT model which includes roll cage and spill tray, VRD, battery isolator and emergency stop.

Applications:
• Ideal for heavy duty welding applications
• Suitable for heavy fabrication, mining, construction and mobile service/maintenance applications

Specifications:
• Output range (A): 30-600
• Rated output: 575A/43V@100% - 600A/40V@60%
• Auxillary power: 7.2kW-2 x 240V
• Engine model type: Deutz TD2.9L4 Turbo; 4 cyl, Diesel
• Processes: Stick, TIG, MIG, Flux-Cored and Gouging
• Air supply: 60 CFM @100psi
• HP & RPM: 60V avg @ 1800 RPM; 66V peak @ 1800 RPM
• Fitted with Voltage Reduction Device (VRD)
• Dimensions (mm): 1067H x 836W x 1753Dmm
• Weight (kg): 787

Details

  • Brand:
    Lincoln Electric
  • Unit/Pack:
    EA
