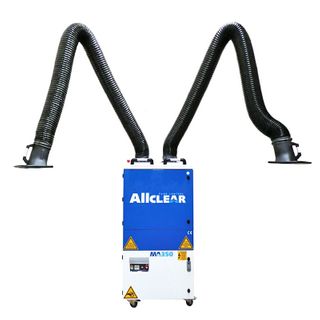

AllClear MA350 Auto Fume Filter Unit 3Ph/415V w/Twin 3m Arm

Stock Code:
$9,509.30 excl GST
Stock Level:
Please contact us for stock availability



The AllClear MA350 Auto is a durable mobile welding and grinding fume extraction unit equipped with 2 x 3-metre arms. The AllClear MA350-auto has an auto air rotating filter cleaning system. The AllClear MA350 Auto has cleanable cartridge filters, working hour counter, filter fullness indicator, malfunction warning and a special dust collection bin.

Mounted on caster wheels for greater mobility, the AllClear MA350 has an impact plate above the filter to reduce the risk of burnout and increase the life of the filters.

• Compact design makes the unit take up little space in the work area and can be moved very easily
• Ergonomic design, gives the user access to all functions without problems
• The special equipment used in the joints of the acrobat arm with internal mechanism prevents metal fatigue and protects the integrity of the arm
• Metal Pipe Type arm is resistant to heavy conditions and high temperatures
• The filter cleaning door allows easy and safe access to the cartridge filter. The Compressed air gun also provides quick and easy cleaning
• Cartridge filter, 29m² surface, nanofiber structure provides very high filtration efficiency and extended lifetime
• Suction hood catches the particles easily with its large structure which is Lightweight and durable
• The unique patented dust collection system drawer, lengthens the cartridge filter life, providing safer dust removal of dust which can be discharged even when the machine is running

Motor Power: 2.2kW
Mains Supply: 415V 3Ph
Maximum Air Flow: 3500m³ per hour
Air Flow at Suction Point: 1270m³ per hour
Area of Filter Cartridge: 2 x Cartridge 2 x 14m²
Filter Cleaning: Auto
Standard Arm Length: 2 x 3m long
Body: Galvanised Steel
Fan: Aluminium
Noise: 72 dba
Sound Insulation: Acoustic Sponge
Dimensions (L x W x H) mm: 720 x 785 x 1480
Weight: 137kgs
