Lincoln LF 56D Wire Feeder

Stock Code:
Contact Us For Price
Stock Level:
Please contact us for stock availability

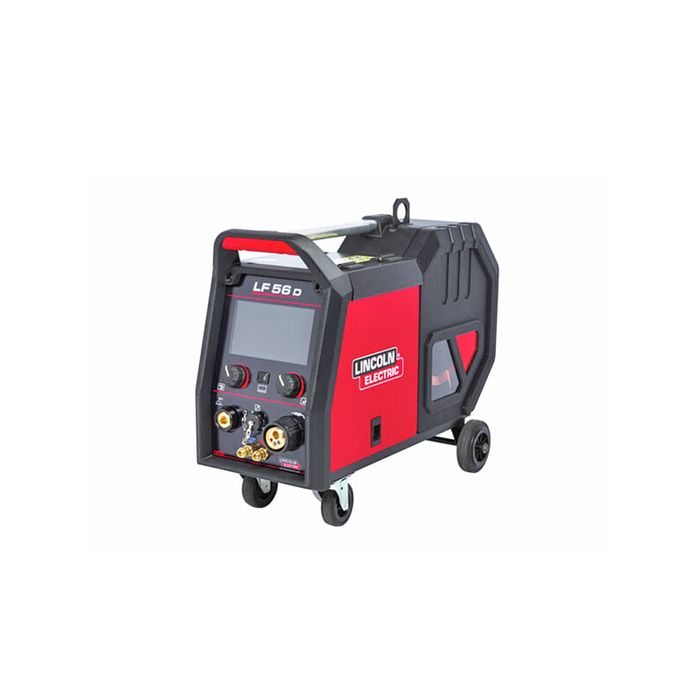

The Lincoln Electric LF 56D Wire Feeder is a small rugged and easy to handle feeder with large display bright digital meters, an easy-to-understand user interface panel that makes it easy to set weld parameters for any demanding application. The unit provides perfect feedability with a 4-roll drive system, powerful motor and optimised wire spool installation, inspection window and lifting eye.

• Small, rugged and easy to handle feeder with 7"TFT colour display with intuitive icon language

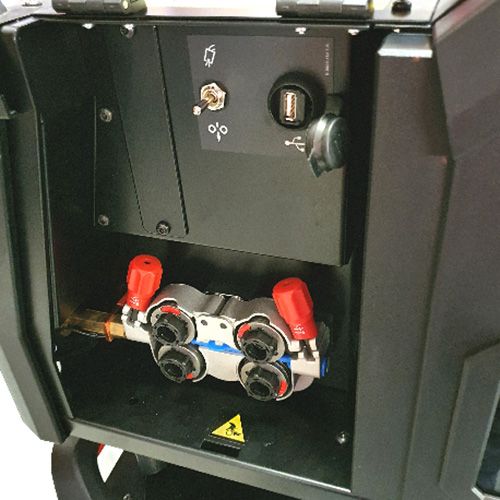

• Top class wire drive system – a new four roll driven wire feeding system is easily accessible, ensuring increased efficiency and providing reliability in feeding various types of wires (especially aluminium ones)
• Featuring 7"TFT screen, languages, full controls and procedural memory presets

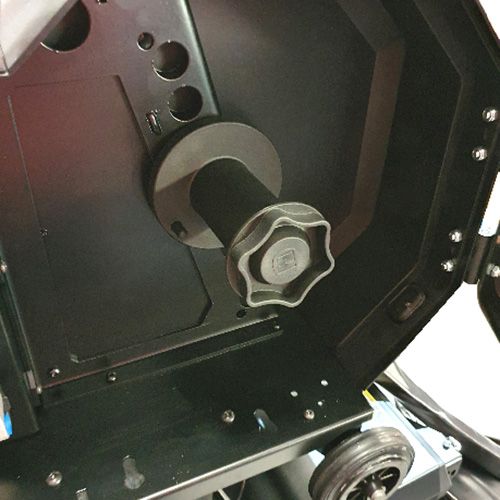

• Optimised wire spool installation, inspection window and lifting eye
• Internal Lighting - Illuminates the wire drive for working in dark environments
• Equipped with wheels as standard
• Push-pull capability for great performance on aluminium
• Can be optionally equipped with gas flow-meter
• USB for simple system update

Cored Wire Size Range(mm):1.0-1.6
Wire Speed Range (m/min) 1-22
Dimensions (mm): 516H x 302W x 642D
Weight (kg):19
