Katbak Ceramic Weld Backing 1G61

Stock Code:
1G61
Contact Us For Price
Stock Level:
Please contact us for stock availability

Downloads

Description

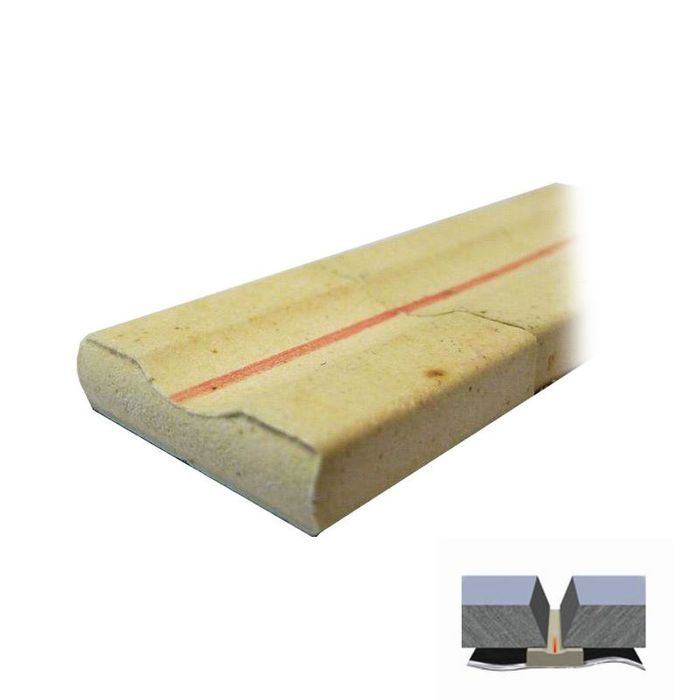

KATBAK Ceramic Weld Backing products offer a reliable and cost-effective method for producing high quality back beads without the need for costly gouging and grinding. Katbak Ceramics feature knuckle joints for use on either flat or curved surfaces.

Features & Benefits:
• Impart x-ray quality back beads on root pass
• Weld one side only
• Deposit more weld metal
• Root weld and fill in one pass

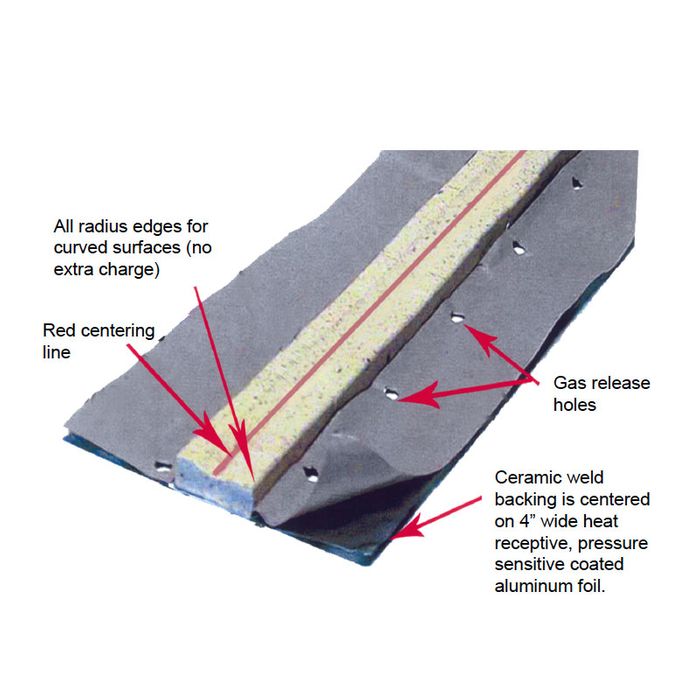

• Wider heat receptive pressure sensitive foil for improved adhesion
• Eliminate defects and rework
• Eliminate costly unnecessary gouging and grinding
• Sizes 1/4" (6.3 mm) to 2" (50.8 mm)

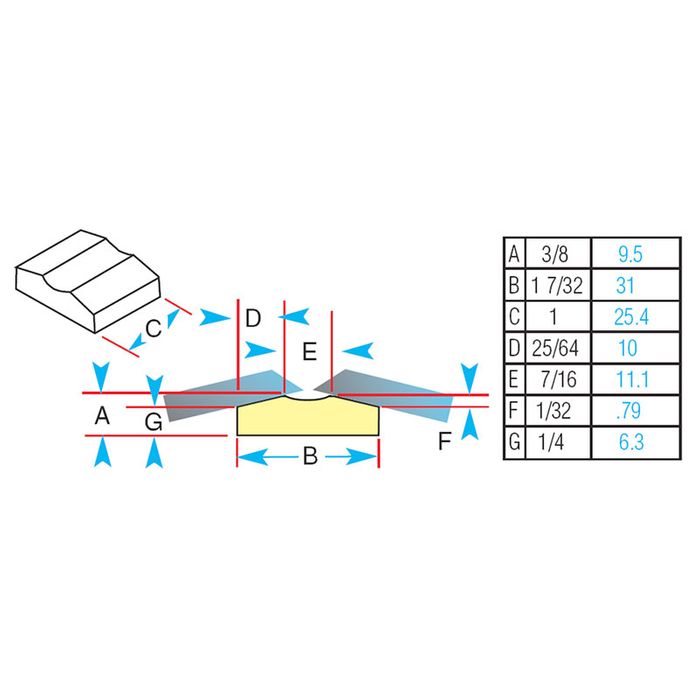

This is for inserting behind plates where there is a taper on the backside of the plate. This tile allows the groove portion to fit snugly against the root. Note that these tiles are square edged and so, will not go round a radius. They are meant for flat plates. Again, these tiles are used for MIG/MAG welding with all the wires.

Details

  • Brand:
    Gullco
  • Web Type:
    Ceramic Weld Backing Bar
  • Pack Qty:
    1
