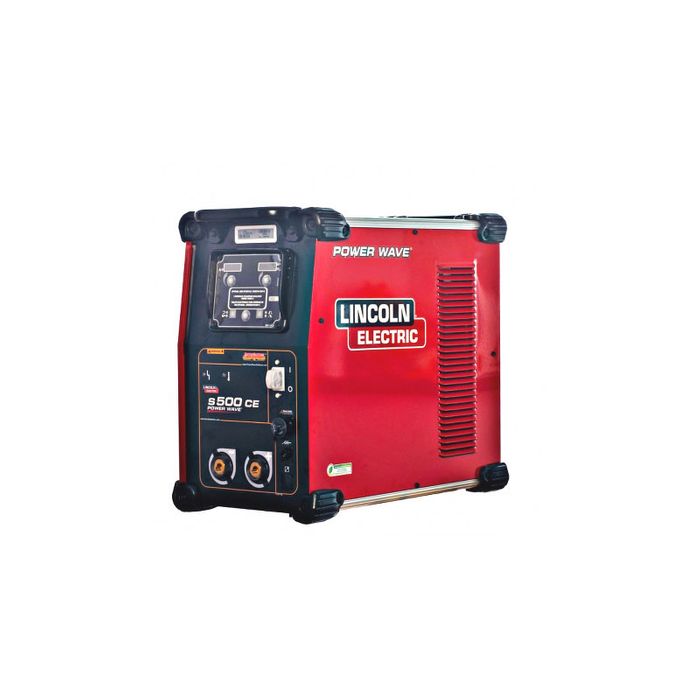

Lincoln Electric Power Wave S500

Stock Code:
K3168-1
Price:
$22,030.00 excl GST
Special order item
Get a Fast Quote
Add to Favourites

Downloads

Description

The multi-process Power Wave® S500 is packed with Lincoln Electric performance technology for welding on thicker materials. It provides an extremely fast arc response, includes over 65 standard welding waveforms for optimised performance on almost any application and efficiently converts input power to reduce operational costs.

Features:
• Power Connect™ Technology - Automatically adjusts to input power from 200 600V, 50 or 60 Hz, 3Ph. Welding output remains constant through the entire input voltage range
• Tribrid™ Power Module - Exceptional welding performance with high power factor and efficiency
• CheckPoint™ - Cloud based system to view or analyse your welding data. Track equipment usage, store weld data, configure fault limits and more
• Standard 115V (10A) AC Duplex Auxiliary Power Receptacle
• Features patent-pending Surge Blocker™ Technology to ensure simultaneous welding performance is not compromised by high starting current devices such as grinders (typically requiring 60A or more peak surge current)
• Durable Case – IP23 rated to withstand harsh environments
• Standard Ethernet – Allows for effortless software upgrades

Specifications:
Processes: MMA, DC TIG, Pulse DC TIG, MIG, Pulse MIG and Flux Cored
Input Power: 230V/400V/3Ph/50-60Hz
Rated Output: 500A/39V@60% - 450A/36.5V@100%
Input Current: 90/60A
Output Range: 5-550A DC
Dimensions (mm): 571H x 355W x 630D
Weight (kg): 68

Details

  • Brand:
    Lincoln Electric
  • Unit/Pack:
    EA
