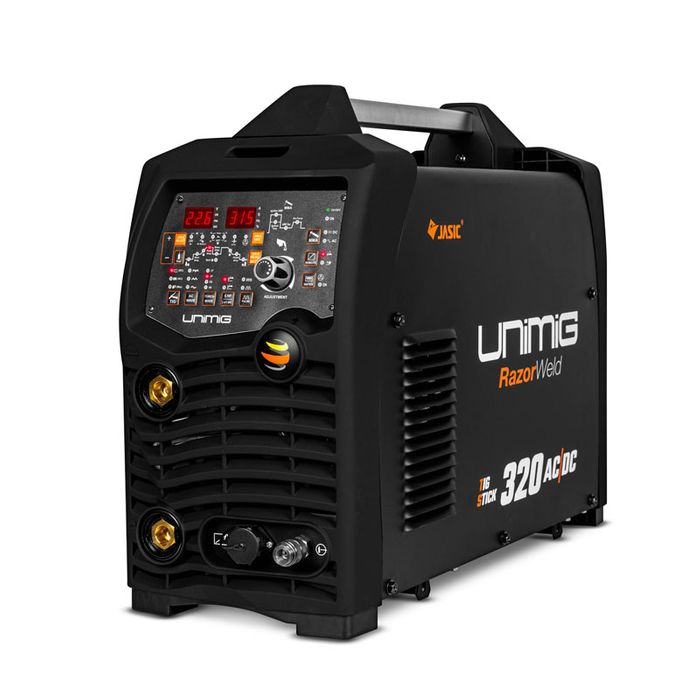

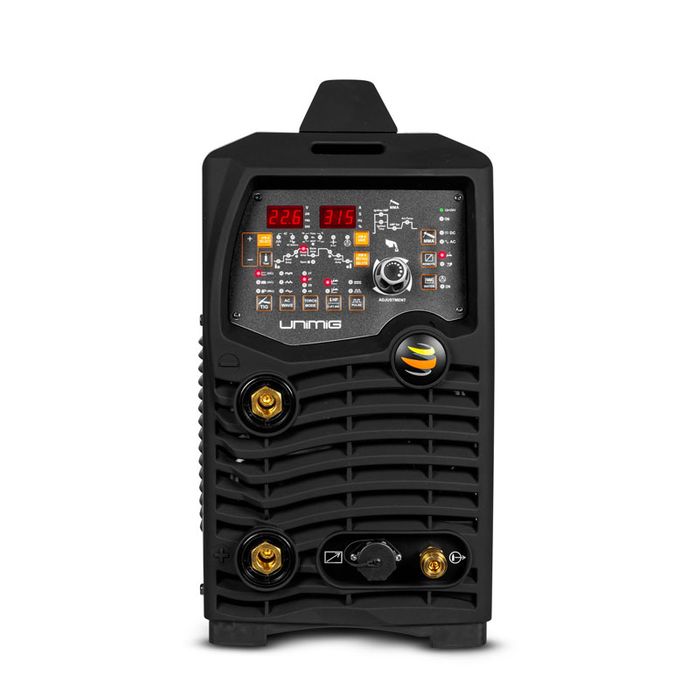

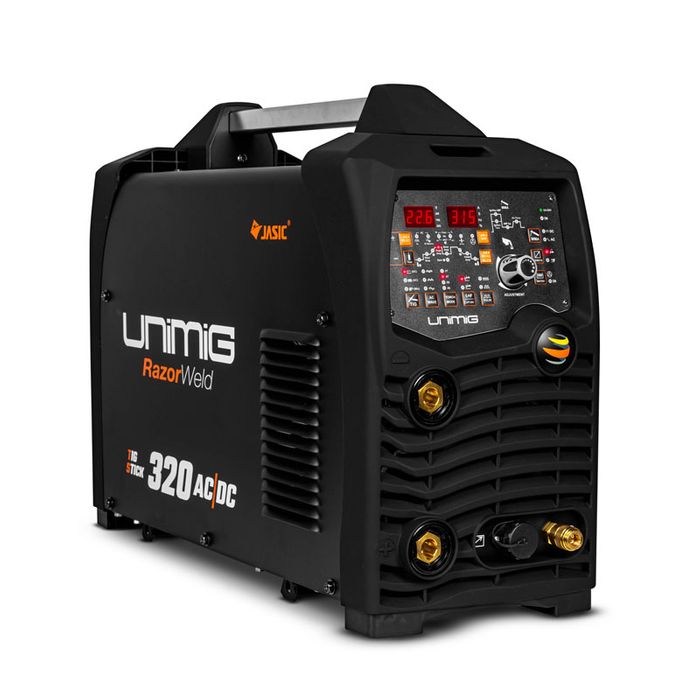

Unimig RAZOR 320 AC/DC TIG Welder

Stock Code:
KUMJRRW320ACDC
Contact Us For Price
Stock Level:
Currently in Stock
Get a Fast Quote
Add to Favourites

Downloads

Description

The UNIMIG RAZOR™ 320 AC/DC gives you maximum control over High-Frequency AC/DC TIG welding for incredible results from start to finish. This Three-Phase machine features Square, Trapezoidal and Sine AC output waveforms, as well as MIX ARC AC/DC functions.

The RAZOR™ 320 AC/DC is a complete and professional TIG /STICK welding machine that is ideal for all high-end aluminium, stainless steel fabrication, marine and industrial engineering welding situations.

The all-new ARC TORCHOLOGY T3 TIG Torch comes standard with the RAZOR™ 320 AC/DC, offering up to 30% better power-to-weight ratio and longer consumable lifecycles. A Remote Foot Control and Water Cooler can also be plugged into the machine for even more versatility and power.

Features:
• Three-phase 415V power
• AC TIG waveforms including square, trapezoidal and sine
• Mix arc AC/DC - combines efficiency of AC with penetration of DC
• Water cooler available - extra power and performance

Specifications:
Primary Input Voltage: 415V 3 Phase
Rated Input Power (kVA) 9.0
Ieff (A): 10.0
Rated Output: 10-320A / 10.4-22.8V
Protection Class: IP21S
Dinse Connector: 35/50
No Load Voltage: 73V
Generator Requirement: 10Kva (Min)
Electrode Range (mm): 2.5-4.0
Duty Cycle (40°C): Tig: 30% @ 315A/MMA: 30% @ 270A
Dimensions (mm): 566L x 223W x 405H
Weight (kg): 25.5

Details

  • Brand:
    Unimig
  • Unit/Pack:
    EA
