ProArc Welding Positioner 200kg 240V

Stock Code:
Contact Us For Price
Stock Level:
Currently in Stock

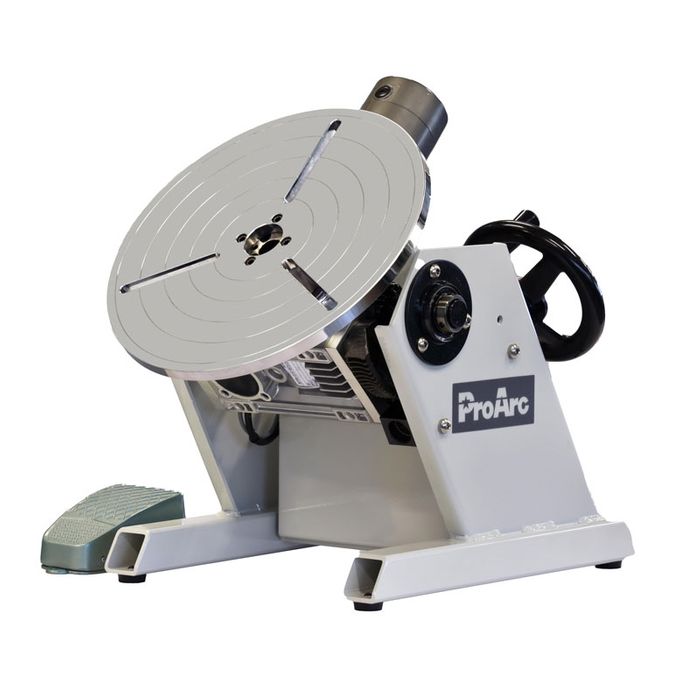

The ProArc PT-203 Welding Positioner allows operators to position jobs for the 'downhand' position in the shortest possible time, without the use of cranes and manpower. ProArc positioners provide safe, long-life operation and trouble-free service - resulting in a faster and more efficient process.

ProArc welding positioners range from 100 to 20,000 kilograms capacity and offer 360° degree rotation and 135° degree tilts on all models.

• High frequency protected
• Machined 'T' slots table with pilot and through hole
• High quality worm gear reducers for smooth operation and minimal backlash
• Free maintenance grounding system
• AD type adjustable table height option available
• Standard forward/reverse rotation and variable speed control

Input power: 240V, 50/60Hz, 1 Phase
Capacity: 200kg horizontal/130kg vertical
Tilt Range: 0-120 degrees
Rotation speed: 1~16rpm
Table Diameter: 320mm
Earthing: 300A
Dimensions (mm): 460L x 315W x 340H
Weight (kg): 42


  • Brand:
  • Web Type:
    ProArc Welding Positioners
  • Unit/Pack:
  • Pack Qty:
