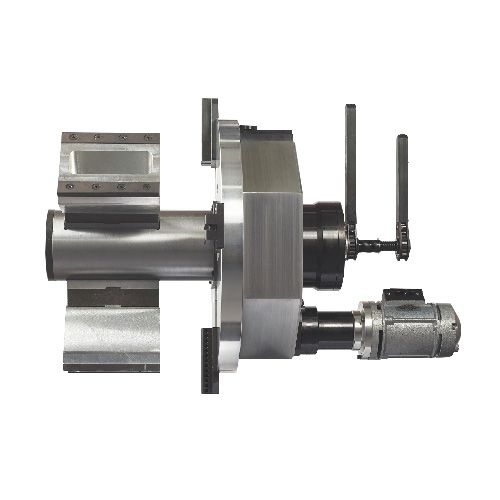

TAG PREP 24 Electric Bevelling Machine

Stock Code:
TP24E220
Contact Us For Price
Special order item
Get a Fast Quote
Add to Favourites

Description

The PREP 24 is a powerful, heavy duty pipe bevelling machine. A 3200W electric motor drives a reduction gearbox converting 3.5 HP into 12500 Nm of torque. Rigidity and unrivalled bevelling strength are ensured with a 5.9? Locking Shaft with built in plug jaws, a bolt in 6 point locking system allows the PREP 24 to cover an impressive range of 7? to 24? Both locking and feeding are controlled by ratchet, enabling the operator to lock into the pipe in seconds, and provide a consistent bevel feed, for the perfect surface finish, even on heavy wall pipes.

Machine supplied with locking jaws, service tools, instruction manual and warranty certificate all in a protective custom wooden crate.

Specifications -
Locking Tube Range (ID/mm): 180-600
Recommended Working Range (inches): 7” - 24"
Idle Speed (rpm): 1-5
Torque (kgm/nm): 12,500
Length of Axial Feed (mm): 60
Max Operating Temp (C°): 35
Max Decibel (dBA): 75
Motor (W): 3200
Input Power (V): 240
Packed Dimensions (mm): 1060W x 830D x 780H
Unit Weight (kg): 225/495
Packed Weight (kg): 325/715

Details

  • Brand:
    TAG
  • Unit/Pack:
    EA
