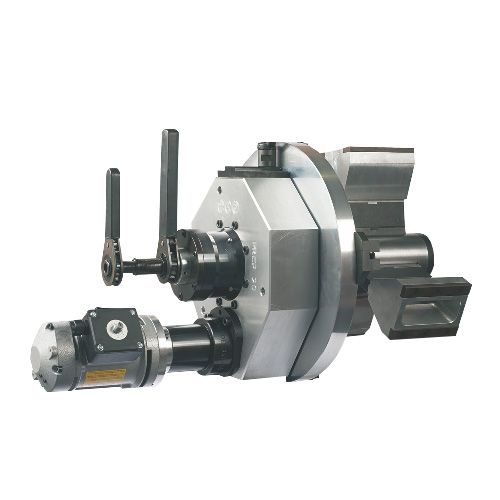

TAG PREP 20 Electric Bevelling Machine

Stock Code:
TP20E220
Contact Us For Price
Special order item
Get a Fast Quote
Add to Favourites

Description

The PREP 20 is an extremely powerful bevelling machine, designed to give long life and accurate weld preparations in tough in-situ or engineering workshop environments. Fully torque reacted throughout its complete range, it uses one centre heavy duty 10mm locking shaft with built in plug jaws for rapid set up. Change over time from one diameter to another is achieved quickly and simply.
Machine supplied with locking jaws, service tools, instruction manual and warranty certificate all in a protective custom wooden crate.

Specifications -
Locking Tube Range (ID/mm): 72-385
Recommended Working Range (inches): 2.8” - 16"
Idle Speed (rpm): 2-21
Torque (kgm/nm): 1770+
Length of Axial Feed (mm): 50
Max Operating Temp (C°): 35
Max Decibel (dBA): 75
Motor (W): 1750
Input Power (V): 240
Packed Dimensions (mm): 760W x 560D x 500H
Unit Weight (kg): 40/88
Packed Weight (kg): 75/165

Details

  • Brand:
    TAG
  • Unit/Pack:
    EA
