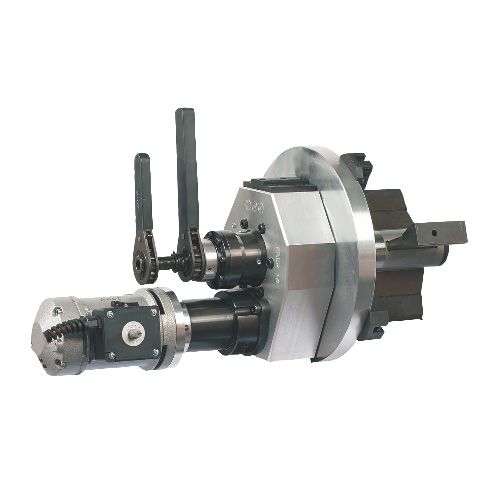

TAG PREP 16 Electric Bevelling Machine

Stock Code:
Contact Us For Price
Stock Level:
Please contact us for stock availability


The PREP 16 is the first in TAG’s new range of a heavy duty mid-large diameter bevelling machines. Offering ratchet ID jaw locking, as well as ratchet bevel feed control for effortless heavy wall preps. Offered with a 1750 Watt electric motor any bevel geometry can be performed with in the impressive 3? to 16? range. J-preps, counter boring, and facing can all be performed, simultaneously, due to its light weight, yet unrivalled power, the PREP 16 is ideal for on-site, off shore, nuclear, and other applications where precision welds are required.

Machine supplied with locking jaws, service tools, instruction manual and warranty certificate all in a protective custom wooden crate.

Specifications -
Locking Tube Range (ID/mm): 72-385
Recommended Working Range (inches): 2.8” - 16"
Idle Speed (rpm): 2-21
Torque (kgm/nm): 1770+
Length of Axial Feed (mm): 50
Max Operating Temp (C°): 35
Max Decibel (dBA): 75
Motor (W): 1750
Input Power (V): 240
Packed Dimensions (mm): 760W x 560D x 500H
Unit Weight (kg): 40/88
Packed Weight (kg): 75/165
