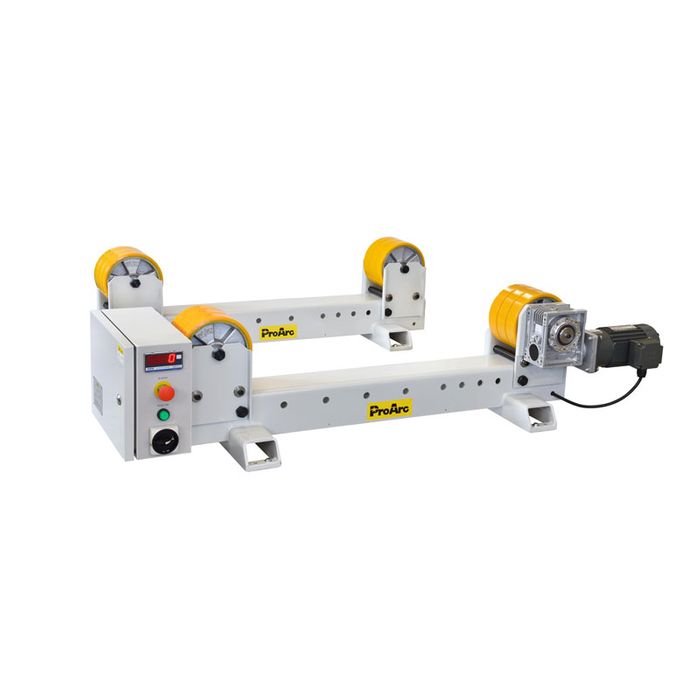

ProArc Turning Rolls 6000kg

Stock Code:
TR-6000B
Contact Us For Price
Stock Level:
Currently in Stock

Description

Key features & attributes:

• ProArc self-aligning turning rolls adjust roller center line setting automatically when loading workpiece
• Main base frames are fabricated and stress relieved before machining
• Superior worm gears & helical drive gears are designed to provide high torque and low backlash
• Synchronised AC inverter drive control for two motors
• Metallic rollers are bounded with polyurethane
• TR-KB series are bolt type for diameter adjustment
• Hand pendant with Forward-Stop-Reverse, speed potentiometer and fast button are standard
• High frequency protected

Specifications:

Power Input: AC 220-240V 50/60Hz 1Ph
Drive Motor: 0.5hp
Turning Capacity: 6,000kg
Diameter Range: Ø50-3,000mm
Speed Range: 60-1,200mm/min
Wheel Diameter: Ø 200mm
Wheel Width: 150mm
Dimensions (mm): 1,670L x 500W x 390H
Weight: 150kg

Details

  • Brand:
    ProArc
  • Unit/Pack:
    EA
  • Pack Qty:
    1
