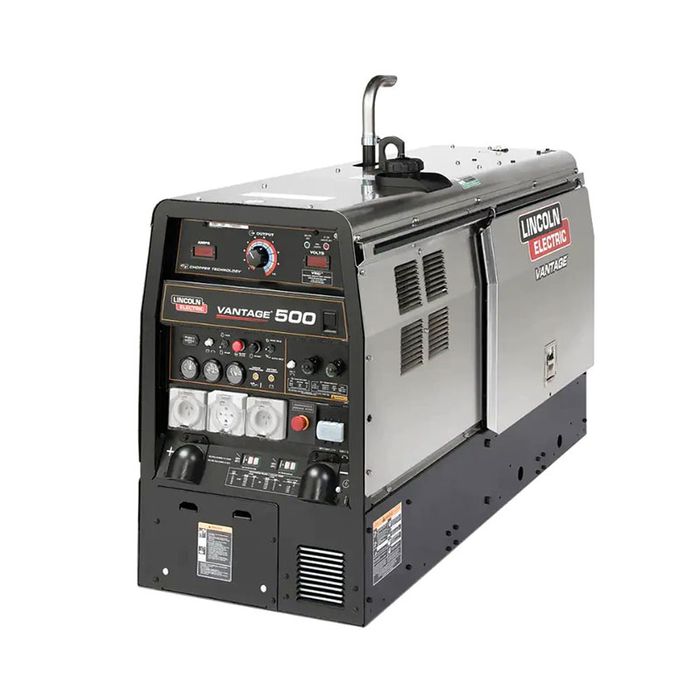

Lincoln Vantage 500 Diesel Welder 50Hz

Stock Code:
Contact Us For Price
Stock Level:
Please contact us for stock availability


The Lincoln Electric Vantage 500 CE is one of the most compact and powerful engine-driven welders/generators in the construction, pipe or rental fleet market today. It is also the most quiet, with a smooth running 4-cylinder Perkins water-cooled diesel engines.

Most suitable for stick welding with a large variety of electrodes, lift TIG welding, CV welding with shielding gas or innershield wires, and arc gouge up to 10 mm carbons.

• Compact Case with Stainless Steel Enclosure
• Standard stainless steel roof, side panels and engine-access door deliver added protection and durability.
• Multi-Process Welding, Separate Arc Gouge Mode
• Select one of five Process Modes, including CC-Stick, Downhill Pipe (for cellulosic electrodes), DC Touch Start TIG®, CV-Wire or Arc Gouging mode which maximises output with up to 10mm carbon rods.
• VRD reduced OCV (open circuit voltage) in CC and CV welding modes for added safety.
• Reliable Engines - 4 cylinder 1,500 RPM Perkins turbo-charged diesel engine runs smooth and quiet. Engine gauges allow you to monitor performance at a glance.

• Rated Output (40°C): 400A/36V@100% 450A/38V@60%
• Output Range: 30-500A
• Generator Output: 14.5 kW
• Engine Type: Perkins 404D-22 Turbo
• Horsepower: 38hp @ 1,500rpm
• Dimensions (mm): 913H x 687W x 1,590L
• Weight (kg): 586


  • Brand:
    Lincoln Electric
