Betaweld XTRACTA X3 Mobile Fume Unit with X-Pulse 415V

Stock Code:
6067
Contact Us For Price
Stock Level:
Currently in Stock
Get a Fast Quote
Add to Favourites

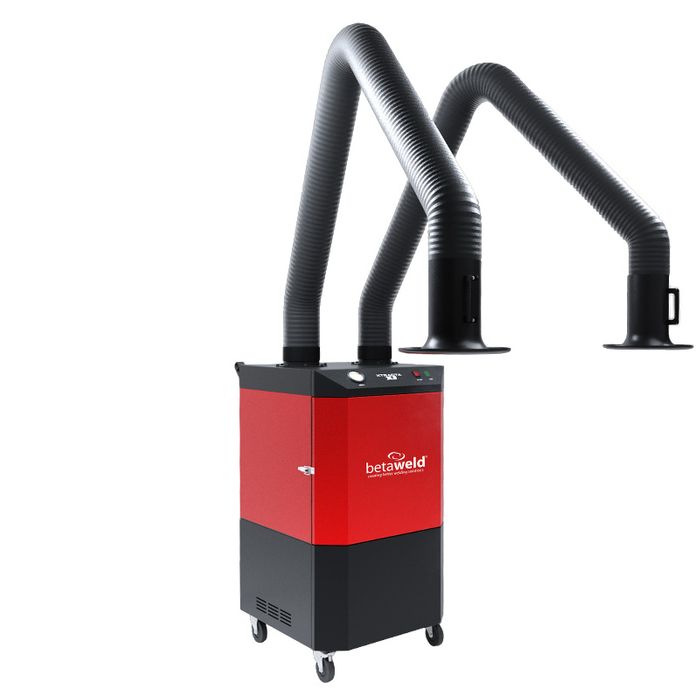

Engineered for demanding industrial environments, the Betaweld XTRACTA X3 delivers a new generation of mobile fume extraction.

Featuring dual extraction arms and M5-class cartridge filtration, the XTRACTA X3 is capable of capturing two different fume sources simultaneously. Designed to capture ultra-fine airborne particles in the 0.3–1 μm range, the X3 delivers highly effective filtration while helping keep the workshop environment cleaner and safer.

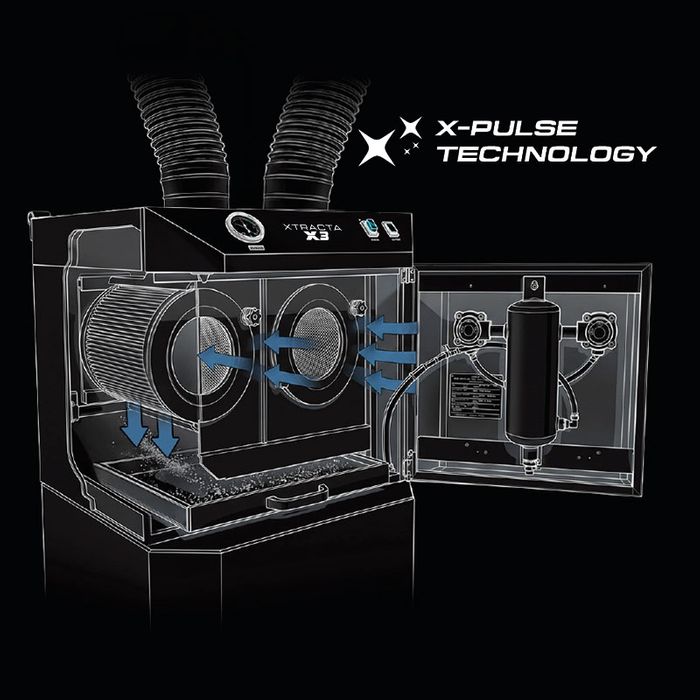

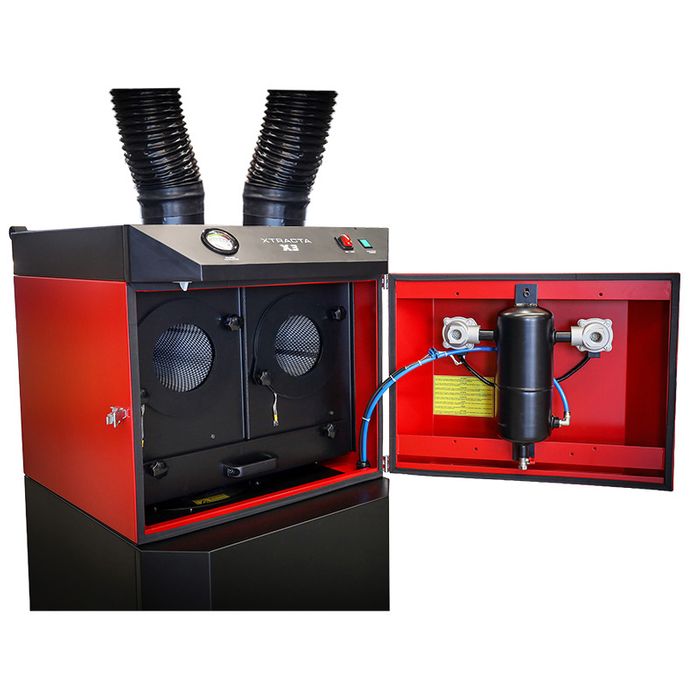

At its core is X-Pulse filter-cleaning technology, using controlled bursts of air to automatically clean the cartridge filters during operation. This helps maintain extraction performance, extend filter life and significantly reduce the need for manual filter maintenance.

The result is a smarter extraction solution built around performance, mobility and productivity.

KEY FEATURES

  • X-Pulse Technology - automatic filter cleaning during operation
  • M5-Class Filters - for highly effective filtration
  • Dual Articulated Extraction Arms allow for simultaneous welding
  • Filter Contamination Indicator delivers real-time airflow monitoring
  • Integrated Dust Drawer - safe and easy waste disposal
  • Powder-coated body offers long-life protection and durability
  • Lockable Wheels - for stable and secure operation

APPLICATIONS

MIG, TIG, STICK, Plasma and Gouging

APPROVALS

  • W3 Rating Compliant
  • AS/NZS ISO 21904 Series

PACKAGE INCLUDES

  • Betaweld XTRACTA X3 Mobile Fume Extraction Unit | Stock code: 6067
  • Tensioner Tire | Stock code: 6161
  • Internal Acrobatic Arm 3m | Stock code: 6162
  • Hose 153mm (3.4m) | Stock code: 6164

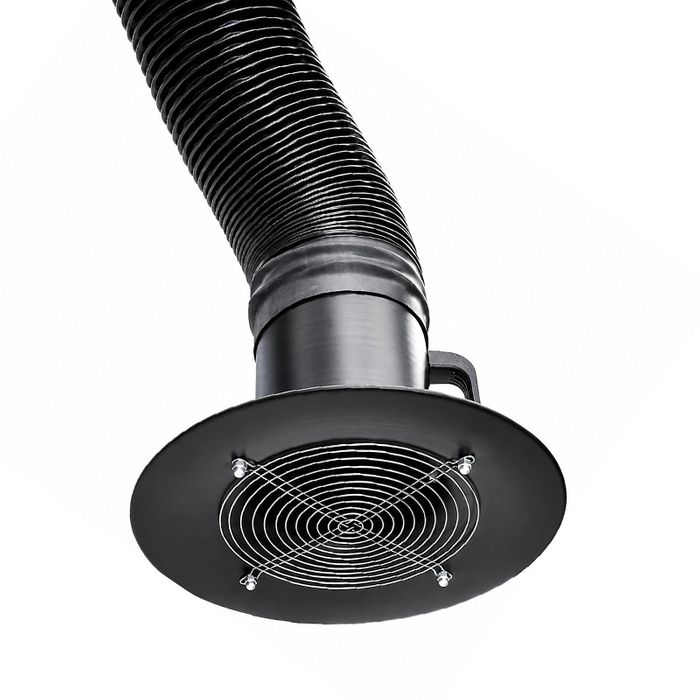

  • Hood With Damper | Stock code: 6166
  • M5 Cartridge Filter (2 pcs) | Stock code: 6170

SPECIFICATIONS

Part No. 6067
Output Voltage: 415V
Motor Output: 1.1kW
Plug Type: 10A
ISO: F
Protection Class: IP X0
Compliance: AS/NZS ISO 21904 Series
Air Suction Rate Maximum: 2 x 2000m³/h
Filter Efficiency: 99%
Filter Surface Area: 6m²
Nominal Current: 5A
Machine Weight 125kg
Total Weight with Arm 159kg
Dimensions [L x W x H]: 750mm x 650mm x 1285mm
Warranty: 3 Years (excludes filters)

Downloads

Details

  • Brand:
    Betaweld
  • Unit/Pack:
    EA
