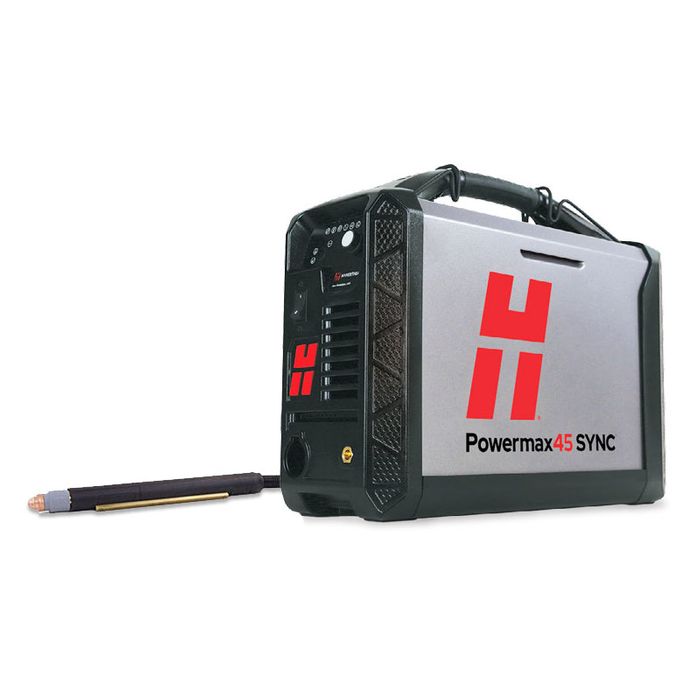

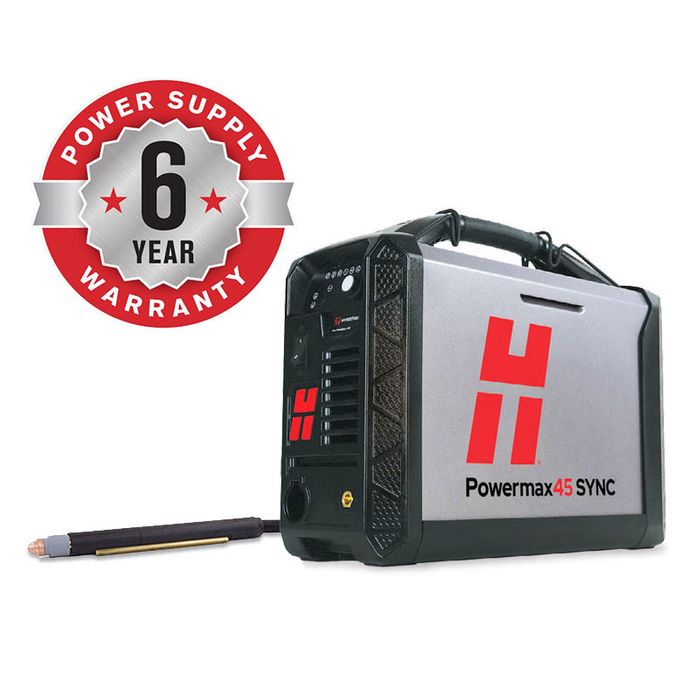

Hypertherm Powermax 45 SYNC with 180° Machine Torch 400V CPC

Stock Code:
088585
Contact Us For Price
Stock Level:
Please contact us for stock availability

Downloads

Description

Part of Hypertherm's Powermax family, the professional-grade Powermax45 SYNC® features built-in intelligence and patented single-piece cartridges for hand cutting, gouging or mechanised cutting. This plasma cutter is well-suited for cut capacities of 16mm (5/8") and severance capacities of 29mm (1 1/8").

Achieve up to 5 x longer consumable life and greater cutting power than higher-amperage competitors with the Powermax45 SYNC®.

This option comes with a 400V power supply with CPC port and voltage divider plus 180° full-length machine torch (7.6m cable length).

Features & Benefits:
• Simplify operations and boost productivity - Single-piece cartridge simplifies operations and dramatically reduces training time
• Minimise operating costs - Up to 5x longer consumable life compared to competitors decreases operating costs
• Reduce secondary operations - Improved cut quality over consumable life delivers better part consistency to reduce secondary operations

Capacity:
• Cutting: 16mm (5/8") at 500mm/min (20 ipm)
• Severance: 29mm (1-1/8") at 125 mm/min (5 ipm)
• Pierce: 12mm (1/2")
• Gouging: 3-4kg per hour

Specifications:
Input Voltage: 400V 3Ph, 50–60Hz
Output: 9-45A
Duty Cycle:
50% @ 45A, 400V 3Ph
60% @ 41A, 400V 3Ph
100% @ 32A, 400V 3Ph
Engine drive requirements: 12.5kVA (10kW) for full 45A output
Size: 442mmD x 173mmW x 357mmH
Weight: 15kg

Recommended Gas Supply:
Cutting: Air (clean, dry and oil-free), Nitrogen, F5
Gouging: Air (clean, dry and oil-free), Nitrogen, F5
Marking: Air (clean dry and oil-free) Argon

Details

  • Brand:
    Hypertherm
  • Web Type:
    Hypertherm Machines
  • Unit/Pack:
    EA
  • Pack Qty:
    1
